DW66-50 3/4-Station Thermoforming Machine
Specification Information
|
Model |
DW66-50(3) |
DW66-50(4) |
|
Suitable Material |
PP,PS,PET,PVC... |
PP,PS,PET,PVC... |
|
Sheet Width |
390-700mm |
390-700mm |
|
Thickness of Sheet |
0.2-2.0mm |
0.2-2.0mm |
|
Max. Formed Area |
680×500mm |
680×500mm |
|
Min. Formed Area |
340×170mm |
340×170mm |
|
Max Punching Area |
660×480mm |
660×480mm |
|
Max. Formed Height |
≤±120mm |
≤±120mm |
|
Dry-running speed |
≤40cycle/min |
≤40cycle/min |
|
Production speed(depends on the product material, design, mould set design) |
≤35pcs/min |
≤35pcs/min |
|
Heating Power |
140kw |
140kw |
|
Machine Weight |
10000kg |
125000kg |
|
Dimension |
12m × 2.2m x2.7m |
13.5m × 2.2m x2.7m |
|
Used Power |
96kw |
103kw |
|
Installed Power |
160kw |
172kw |
Product Introduction

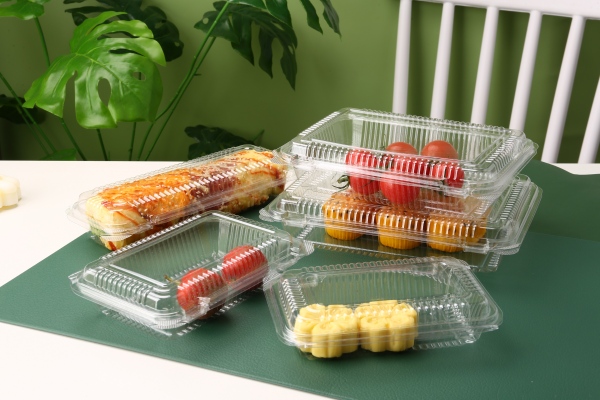

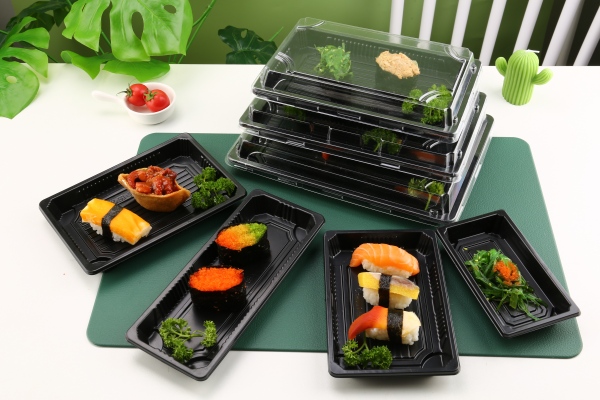

Applied to the production of PP/PS/PET/PVC plastic products such as hardware packs, food package, medicine packing, and cosmetics packs, etc.
Features
- Up/Down Heating oven: 4 stages heating, paired with SSR and B&R control modules, shows quickly response rate, short processing time.
- B&R servomotor control system make machine work perfectly, energy saving and convenience to maintenance.
- Moderate layout, friendly to rapid production of samples or trial orders in bulk.
- We can OEM function, like uitrasonic welding, plug asssit, or independent temperature control.
